In the field of small-pitch LED display, there are two common products: SMD small pitch and COB small pitch, which product is better? Take a look below:

What does COB mean?
COB technology is a small pitch LED display technology developed in recent years, it is different from the traditional SMD table mount package, it directly integrates the chip on the PCB board, rather than one by one rewelding, it mainly solves the SMD small pitch can not break through the P1.0 below the point spacing technology. The COB package eliminates the bracket and the solder paste connection to the PCB by reflow soldering, so that the LED will not operate under external impact, increasing the protection.

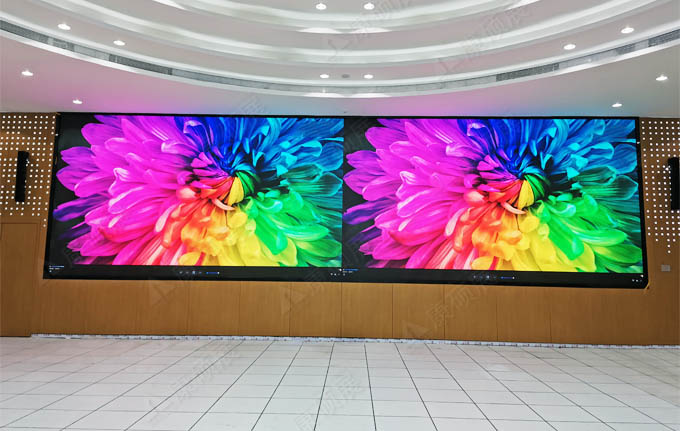

Apexls P1.5COB small pitch display case

1. Spacing model
SMD small pitch package technology is subject to the principle of welding technology, breaking through the point spacing below 1mm becomes very difficult, and COB small pitch LED display does not exist this limitation, usually the point spacing can be controlled in 0.6~2.0mm, can do the traditional LED small pitch can not be mass produced in the field of P1.0 below.

2. Display the effect
SMD small pitch screen with higher pixel density and better color performance, can present more delicate, clearer images and videos. Although the COB small-pitch screen has a lower pixel density, it can achieve higher brightness and wider viewing Angle because the LED chip is directly attached to the circuit board.

3. Protective
COB small pitch LED display because the chip is directly packaged on the PCB substrate, the surface of the epoxy resin package, so the surface is more wear-resistant, anti-collision, dust and waterproof, COB small pitch LED display will not drop lights, while the traditional SMD small pitch LED screen is easy to drop lights.

4. Dead lamp rate
SMD package LED small pitch screen before the factory dead lamp rate reached 30 to 50 parts per million, although before the factory aging and baking chance to reduce the dead lamp, but in a few years after installation there will be more dead lamp phenomenon, and COB small pitch LED display dead lamp rate is very low.

5. Heat dissipation performance
Because the LED chip of the COB small-pitch LED display is directly pasted on the circuit board, the contact area with the circuit board is larger, and the heat dissipation performance is better. The LED chip of the SMD small-pitch LED display is packaged in a plastic package, and the contact area with the circuit board is small, and the heat dissipation performance is relatively poor. Therefore, COB has more advantages in practical stability.

Summary: COB small pitch screen can achieve smaller pitch, in the high-end market and P1.2 and below the pitch market, there is no COB technology, it is difficult to scale business. Protection, reliability is better, but the current price is still too expensive. SMD small-pitch color performance is better, the price is relatively cheap, and the application is more in the 1.5-2.5mm pitch. Both have their own advantages and disadvantages, and how to choose depends on their actual needs and budget. Welcome to contact Apexls.
