What's a grille screen? The grille screen is an emerging LED transparent display in recent years. The light strip is composed of a grid, so it is called a grid screen, also known as a light strip screen, screen, etc. The grille screen is an innovative display technology, which is widely used in various indoor and outdoor commercial display and advertising fields.


                                                               Russia 700 square meters grille screen case

1. LED grille screen features

First of all, the biggest feature of the grille screen is its high degree of customization and flexibility. Because the grille screen is composed of a number of separable light strips, it can be freely combined into a variety of shapes and sizes of the screen according to needs. This design feature makes the grille screen suitable for different scenes, whether indoor or outdoor, can meet a variety of space requirements.

Second, the grille screen has high brightness and contrast. Because each strip can be controlled independently, the grille screen allows for more subtle brightness adjustment and contrast control, resulting in a clear, full picture in a variety of light conditions. This makes the grille screen widely used in outdoor billboards, stage performances and other occasions requiring high brightness and contrast.

In addition, the grille screen also has the characteristics of low energy consumption and long life. Compared with the traditional display, the grid screen uses the LED dot matrix as the display unit, and the LED lamp beads have the advantages of high efficiency and energy saving and long life. At the same time, because each light strip can be controlled independently, the grille screen can be partially lit up and off, further reducing energy consumption. This makes the grille screen even more attractive in the context of sustainability.

Finally, the grille screen also has a good viewing Angle and reliability. The grille screen is composed of multiple light strips, each with a smaller viewing Angle, so that the entire screen has a wider viewing Angle, which can provide a better viewing experience. At the same time, because the grille screen is composed of multiple light strips, even if a light strip fails, it will not affect the normal display of the entire screen, ensuring the reliability of the grille screen.

2. Grid screen power

Grid screen power is usually 100~300W/ square meter, this is the average power. The power of the grille screen is determined by a number of factors. The first is the display content, different image or video content requires different brightness and color performance, which can lead to changes in power. Usually higher brightness, rich color content, higher power consumption. The second is the grille screen model, such as the small model product resolution law is higher, relatively higher power, in addition to the use of different environments, the power application is not the same, such as indoor low brightness display requirements, and outdoor high brightness display requirements, the corresponding power may also be different.

With the continuous development of technology, Kangshuo's new generation of grille screens use more energy-saving and efficient LED strips, so that power consumption is effectively controlled. At the same time, the application of intelligent control system also provides a way of power management, which can achieve reasonable intelligent adjustment of brightness and power consumption, so as to achieve effective use of energy.

3. Grille screen size

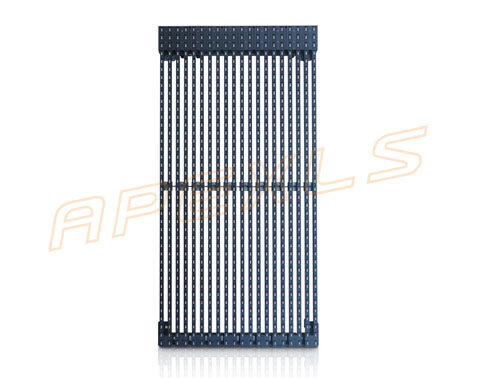

The cabinet size of the grille screen is usually 1000×500mm and 1500×500mm, that is, a cabinet area within 1 square meter. The grille large screen we see is usually spliced in units of the box, such as a screen area of 50 square meters, which requires 100 pieces of 1000×500mm cabinet splicing.

First of all, the size of the grille screen is directly related to the ease of installation and use. Smaller size grille screens are suitable for installation in tight Spaces or places requiring compact layout, while larger size grille screens are suitable for occasions requiring a larger viewing area. Therefore, when choosing the size, it is necessary to comprehensively consider factors such as the site, the audience distance, and the content presentation requirements to ensure that the size of the grille screen matches the actual needs.

Secondly, the smaller size of the grille screen due to the density of pixels, can present more delicate images and high-definition video content, suitable for places requiring high-quality visual effects, such as high-end commercial shows and indoor performing arts activities. The larger size of the grille screen can provide a broader visual experience, suitable for outdoor advertising, sports events and other large places.

In addition, the larger size of the grille screen is more expensive because it requires more light bars and brackets. Therefore, when choosing the grille screen size, it is necessary to consider the budget factors comprehensively to ensure that the size and performance are satisfactory within the affordable range.


                                                                  LED transparent screen cabinet

4. Difference between LED transparent screen and LED grille screen
First of all, transparent screens and grille screens are also very different in application. Due to the particularity of its structure, the grille screen is often used for indoor and outdoor large screens, such as billboards, stage backgrounds, stadiums and so on. These application scenarios require high brightness and brightness of the screen, and the grille screen can provide high brightness and color brightness, which is suitable for remote viewing. The transparent screen is often used in shopping malls, exhibition halls, museums and other indoor environments, images or text can be displayed on the transparent screen, making the display content more vivid and eye-catching.

Secondly, the model difference, LED grille screen point spacing is large, generally P10 or more models, point density is relatively small. The LED transparent screen is indoor installation outdoor viewing, the point density is relatively large, usually P3.9 P7.8 P10.4 and other models, the point spacing is small, and the picture quality is higher.

The final shape is different, the LED grille screen uses cold-rolled steel plate or die-cast aluminum to make the box, and the light strip filling waterproof process will increase the weight of the light strip itself, which will lead to the weight of the whole screen is heavier, the weight is about 20KG/ square meter. The LED transparent screen does not exist this process, the lamp strip is thinner, the screen body is lighter, and the weight is as low as 8KG/ square meter.
